How to use Kafka as a load balancer for a topic

December 23, 2019

This is continuation of my Kafka series. Please read my previous article.

Running multiple Kafka consumer with one producer in C

To consume a topic from multiple consumer we need to create that much partition for a topic.

for example: If we need 3 consumers to consume a topic as a load balancer then we have to create minimum 3 partition for that topic.

Create Admin project to create partition

Create a new Admin project, add a button then include below program.

here we will increase the testTopic partition to 4

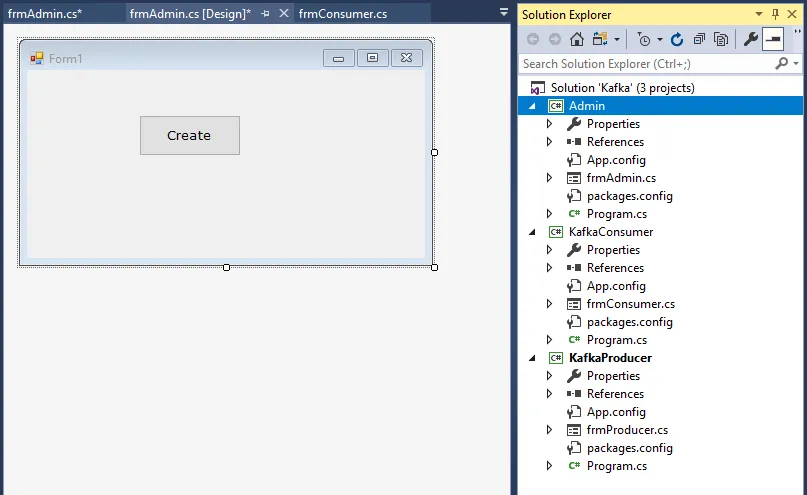

admin project form

using Confluent.Kafka;
using Confluent.Kafka.Admin;
using System;
using System.Collections.Generic;
using System.Windows.Forms;

namespace Admin
{
    public partial class frmAdmin : Form
    {
        const string TOPIC = "testTopic";

        public frmAdmin()
        {
            InitializeComponent();
        }

        private async void cmdCreate_Click(object sender, EventArgs e)
        {
            using (var adminClient = new AdminClientBuilder(new AdminClientConfig { BootstrapServers = "localhost:9092" }).Build())
            {
                try
                {
                    // partition specification
                    PartitionsSpecification ps = new PartitionsSpecification();
                    ps.Topic = TOPIC;
                    ps.IncreaseTo = 4;

                    // add it into a list
                    List<PartitionsSpecification> partitionsSpecifications = new List<PartitionsSpecification>();
                    partitionsSpecifications.Add(ps);

                    await adminClient.CreatePartitionsAsync(partitionsSpecifications);

                    MessageBox.Show("Created");
                }
                catch (CreatePartitionsException er)
                {
                    MessageBox.Show($"An error occured creating topic {er.Results[0].Topic}: {er.Results[0].Error.Reason}");
                }
            }
        }
    }
}

We have to run this program only once.
Run the Admin project (above program) to increase the number of parition.

Producer project

Add one list box in form then add the below code

using System;
using System.Collections.Generic;
using System.Windows.Forms;
using Confluent.Kafka;

namespace KafkaProducer
{
    public partial class frmProducer : Form
    {
        const string TOPIC = "testTopic";
        private IProducer<Null, string> pBuilder;

        public frmProducer()
        {
            InitializeComponent();
        }

        private async void timer1_Tick(object sender, EventArgs e)
        {
            try
            {
                // instead of sending some value, we send current DateTime as value
                var dr = await pBuilder.ProduceAsync(TOPIC, new Message<Null, string> { Value = DateTime.Now.ToLongTimeString() });

                // once done, add the value into list box
                listBox1.Items.Add($"{dr.Value} - Sent to Partition: {dr.Partition.Value}");

                // make sure the last item in the list box is visible
                listBox1.TopIndex = listBox1.Items.Count - 1;
            }
            catch (ProduceException<Null, string> err)
            {
                MessageBox.Show($"Failed to deliver msg: {err.Error.Reason}");
            }
        }

        private void frmProducer_Load(object sender, EventArgs e)
        {
            ProducerConfig config = new ProducerConfig { BootstrapServers = "localhost:9092" };
            pBuilder = new ProducerBuilder<Null, string>(config).Build();

            timer1.Enabled = true;
        }

        private void frmProducer_FormClosing(object sender, FormClosingEventArgs e)
        {
            timer1.Enabled = false;
            pBuilder.Dispose();
        }
    }
}

Consumer project

same as prodcuer form:- add a list box then add below code

using System;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using Confluent.Kafka;

namespace KafkaConsumer
{
    public partial class frmConsumer : Form
    {
        CancellationTokenSource cts = new CancellationTokenSource();

        public frmConsumer()
        {
            InitializeComponent();
        }

        private void StartListen()
        {
            var conf = new ConsumerConfig
            {
                GroupId = "test-consumer-group",
                BootstrapServers = "localhost:9092",
                AutoOffsetReset = AutoOffsetReset.Earliest
            };

            using (var c = new ConsumerBuilder<Ignore, string>(conf).Build())
            {
                c.Subscribe("testTopic");

                try
                {
                    while (true)
                    {
                        try
                        {
                            var cr = c.Consume(cts.Token);

                            // Adding the consumed values into the UI
                            listBox1.Invoke(new Action(() =>
                            {
                                listBox1.Items.Add($"{cr.Value} - from Partition: {cr.Partition.Value}" );

                                // make sure the last item in the list box is visible
                                listBox1.TopIndex = listBox1.Items.Count - 1;
                            }));
                        }
                        catch (ConsumeException err)
                        {
                            MessageBox.Show($"Error occured: {err.Error.Reason}");
                        }
                    }
                }
                catch (OperationCanceledException)
                {
                    // Ensure the consumer leaves the group cleanly and final offsets are committed.
                    c.Close();
                }
            }
        }

        private void Form1_FormClosing(object sender, FormClosingEventArgs e)
        {
            cts.Cancel();
        }

        private async void frmConsumer_Load(object sender, EventArgs e)
        {
            await Task.Run(() => StartListen());
        }
    }
}

Consumer group

  1. Consumer group is the logic behind this.
  2. If we add a consumer into a group then that will act as a load balancer for that topic.
  3. for example: If we have two consumer with same consumer group ID then the messages will be spllited to these consumers.
  4. For this, we need our topic must be paritioned. If we want to run 3 consumers as a load balancer then our topic must be partitioned minimum 3. That’s what we did with the Admin project in the first step.

Run - One producer - One consumer

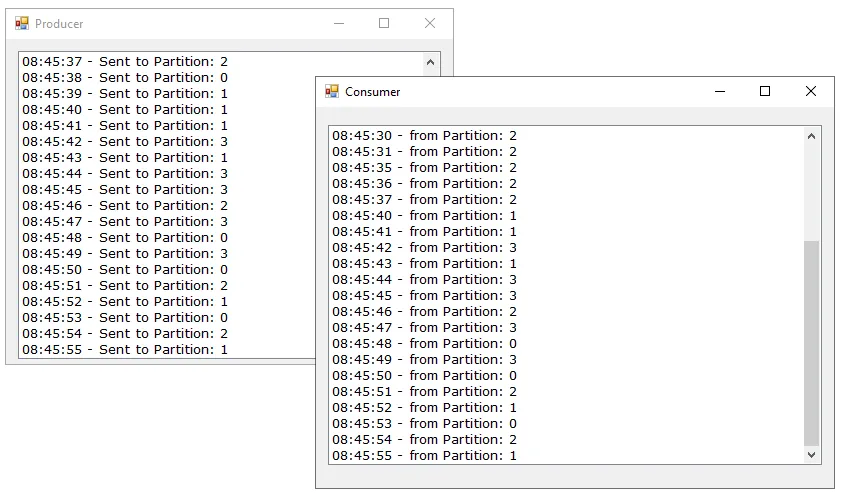

All the messages are consumed by the consumer one producer and one consumer screen

Run - One producer - Two consumer

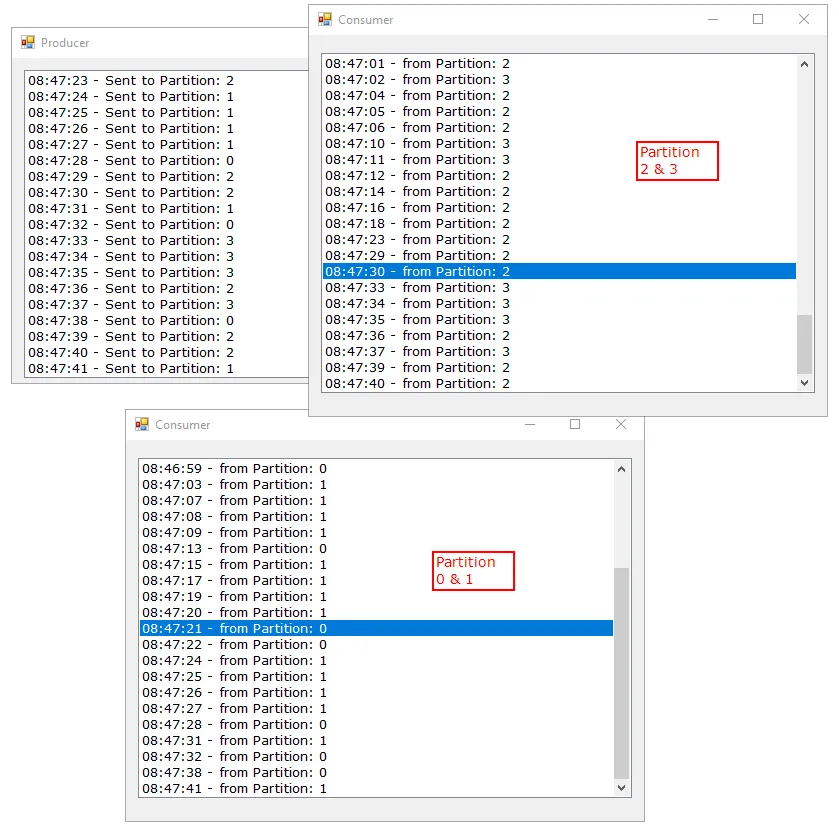

When we open one more producer, It will work as a load balancer. Parition 2 and 3 will be consumed by one consumer, 0 and 1 will be other consumer. one producer   two consumer

Run - One producer - Multiple consumer

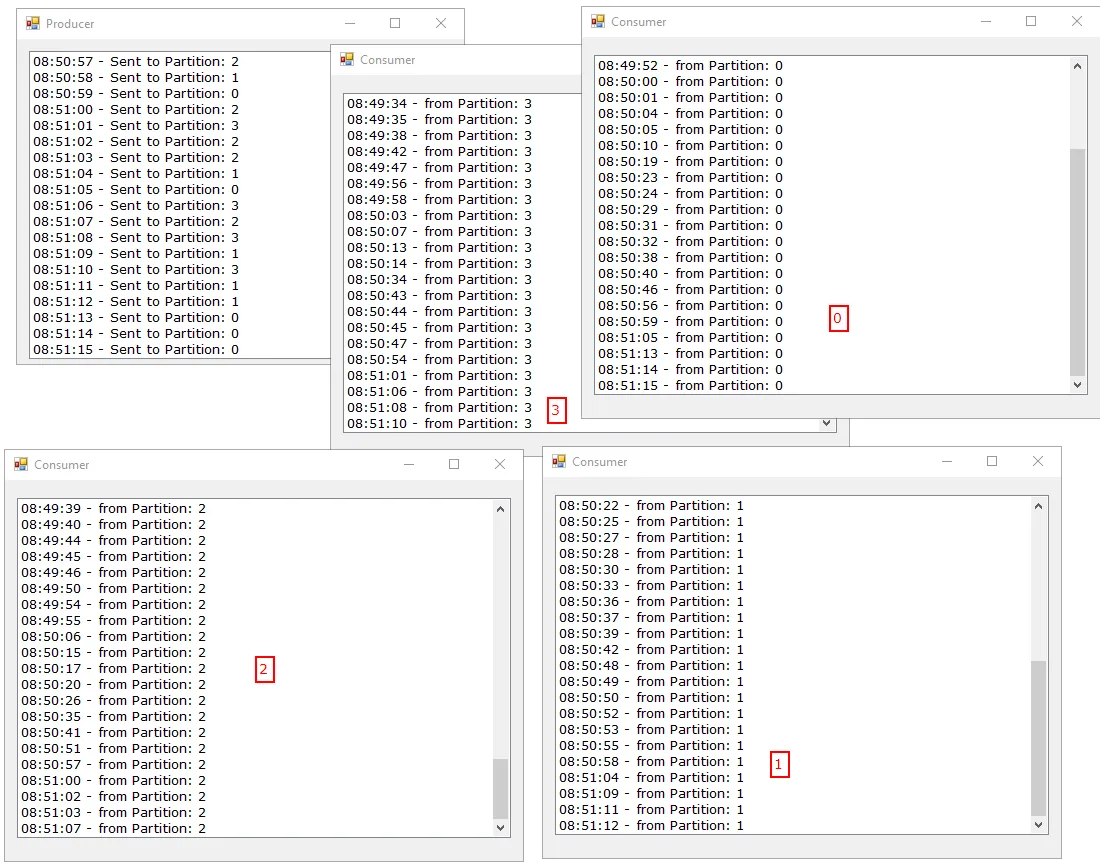

We created four partition. If we run four consumers then one parition will be consumed by one consumer. one producer   multiple consumer

If we open one more consumer (5th), then the 5th one will not receive any topics, because the topic doesn’t have 5th parition. Our topic is having onely 4 partition so only four consumers can consume at a same time.
