How to use Apache kafka in C#

December 22, 2019

In this article I will explain how to use kafka in C#. Ensure that you already installed kafka for windows else check my previous article Install Apache Kafka in Windows 10

We are going to use Confluent Kafka library.

Setting up Projects in visual studio

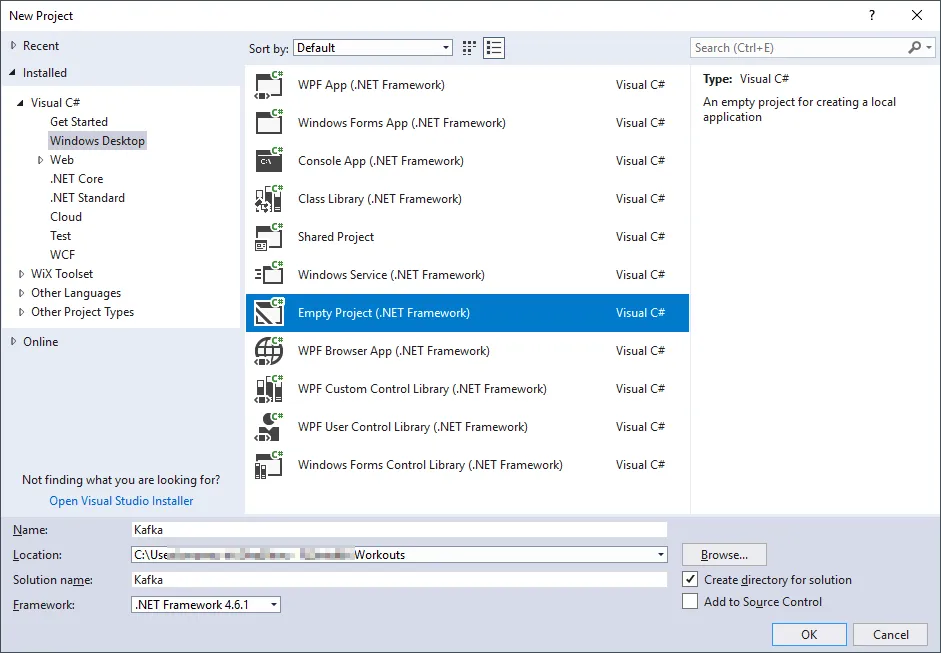

Create an empty project in .NET create empty project

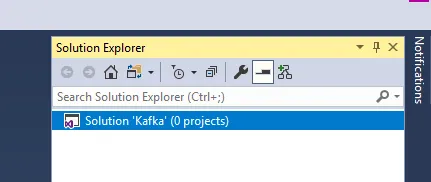

Delete empty project and keep only the solution delete empty project

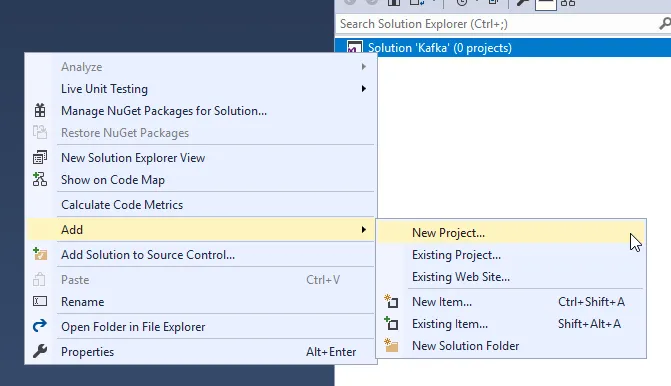

Add new project add new project

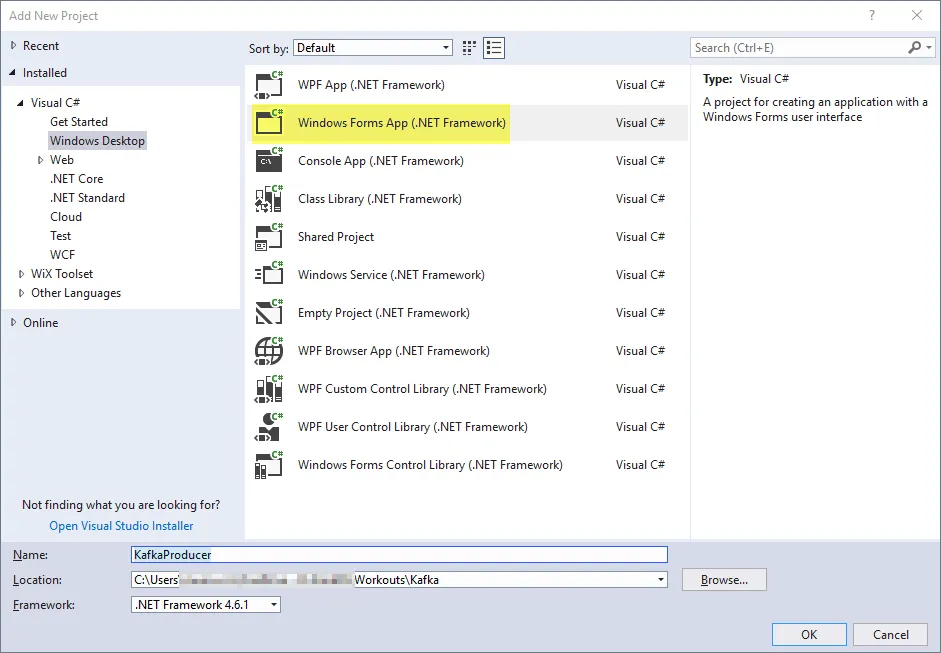

Create new Kafka producer project add new kafkaProducer project

created kafkaProducer project

Add NuGet packages

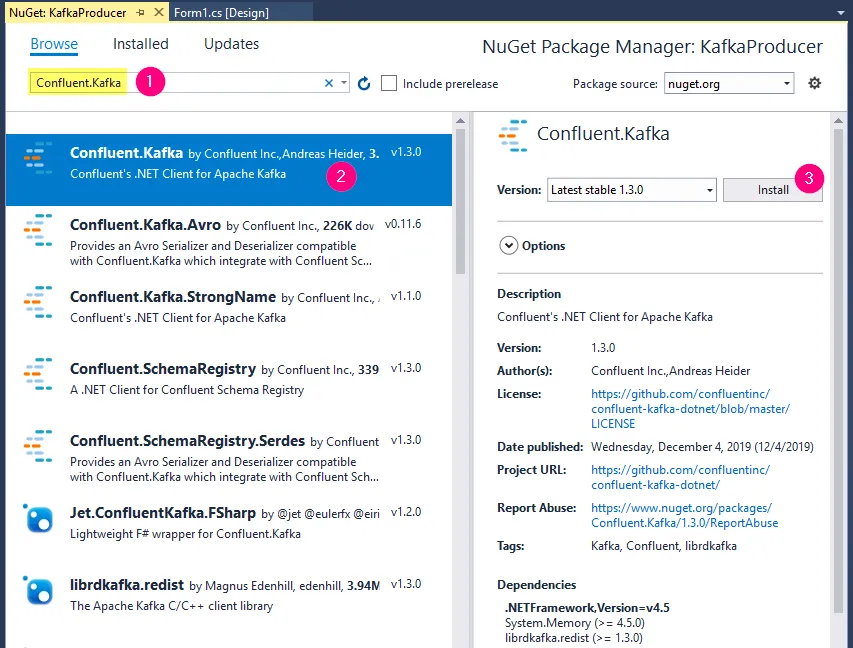

Right click project —> Manage NuGet packages

  1. search Confluent.Kafka
  2. select the correct package
  3. install

install kafka nuget package

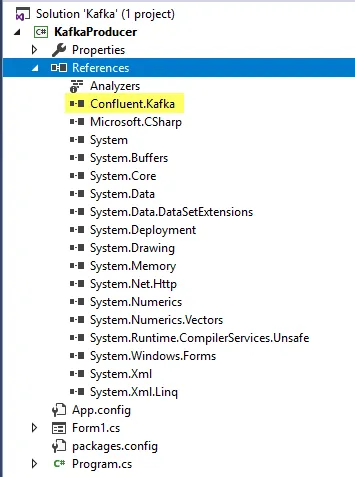

Ensure that Confluent.Kafka added as reference ensure kafka reference added

Add code

Add a button and include the following code on click event

using System;
using System.Windows.Forms;
using Confluent.Kafka;

namespace KafkaProducer
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        // Ensure that async is added in the function
        private async void cmdProduce_Click(object sender, EventArgs e)
        {
            var config = new ProducerConfig { BootstrapServers = "localhost:9092" };

            using(var p = new ProducerBuilder<Null, string>(config).Build())
            {
                try
                {
                    var dr = await p.ProduceAsync("testTopic", new Message<Null, string> { Value = "abc" });
                }
                catch (ProduceException<Null, string> err)
                {
                    MessageBox.Show($"Failed to deliver msg: {err.Error.Reason}");
                }
            }
        }
    }
}

the above code is more self explanatory. We connect kafka and send abc message to testTopic topic

Add new project for Consumer

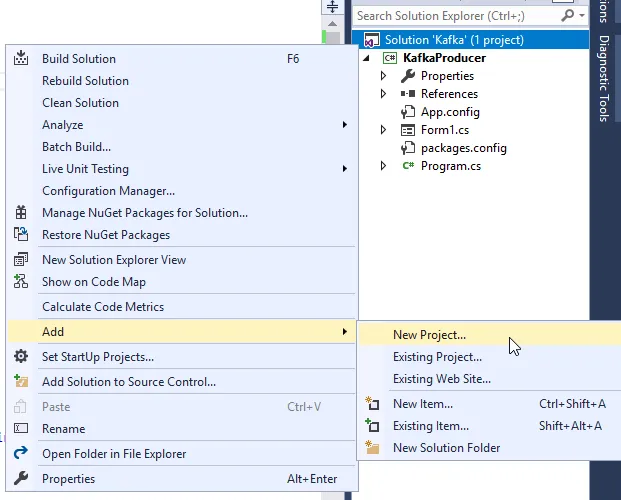

Right click on solution —> Add —> New Project new project for consumer

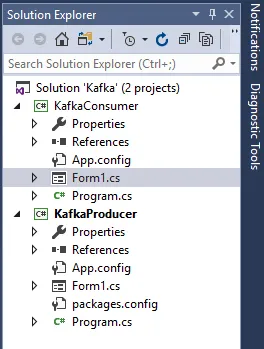

Add a new windows application project and name it KafkaConsumer consumer and producer project in solution exp

We have to add the Confluent package for the consumer project also. Add nuget package Confluent.Kafka like the KafkaProducer project.

Add code

Add a list box in form and add below code

using System;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using Confluent.Kafka;

namespace KafkaConsumer
{
    public partial class frmConsumer : Form
    {
        CancellationTokenSource cts = new CancellationTokenSource();

        public frmConsumer()
        {
            InitializeComponent();
        }

        private void StartListen()
        {
            var conf = new ConsumerConfig
            {
                GroupId = "test-consumer-group",
                BootstrapServers = "localhost:9092",
                AutoOffsetReset = AutoOffsetReset.Earliest
            };

            using (var c = new ConsumerBuilder<Ignore, string>(conf).Build())
            {
                c.Subscribe("testTopic");

                try
                {
                    while (true)
                    {
                        try
                        {
                            var cr = c.Consume(cts.Token);

                            // Adding the consumed values into the UI
                            listBox1.Invoke(new Action(() =>
                            {
                                listBox1.Items.Add(cr.Value);
                            }));
                        }
                        catch (ConsumeException err)
                        {
                            MessageBox.Show($"Error occured: {err.Error.Reason}");
                        }
                    }
                }
                catch (OperationCanceledException)
                {
                    // Ensure the consumer leaves the group cleanly and final offsets are committed.
                    c.Close();
                }
            }
        }

        private void Form1_FormClosing(object sender, FormClosingEventArgs e)
        {
            cts.Cancel();
        }

        private async void frmConsumer_Load(object sender, EventArgs e)
        {
            await Task.Run(() => StartListen());
        }
    }
}
  1. We need a endless loop for consumer so created a new Task in form load.
  2. We have separate method StartListen for consumer.

There are five main steps in the consumer code.

  1. Build the consumer by passing config.
  2. Subscribe topic testTopic
  3. Create endless loop.
  4. Consume the messages. This is blocking statement. The execution waits here untile the cosumer consumes a message. Once we get any message then the execution will move next line.
  5. Add the received message into listbox. We are inside a different thread so directly updating UI element is not possible, so we use Invoke method to update the UI.

Run

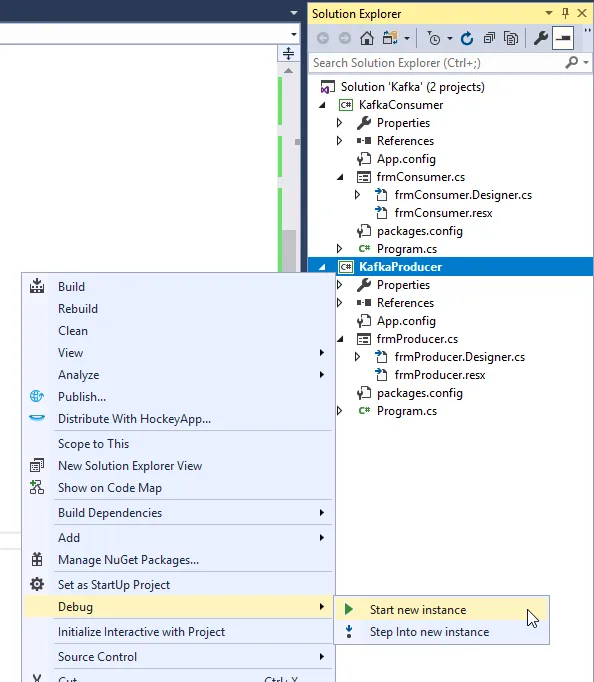

Right click kafkaProducer project —> Debug —> Start new instance start new instance

now do the same for KafkaConsumer project to run that.

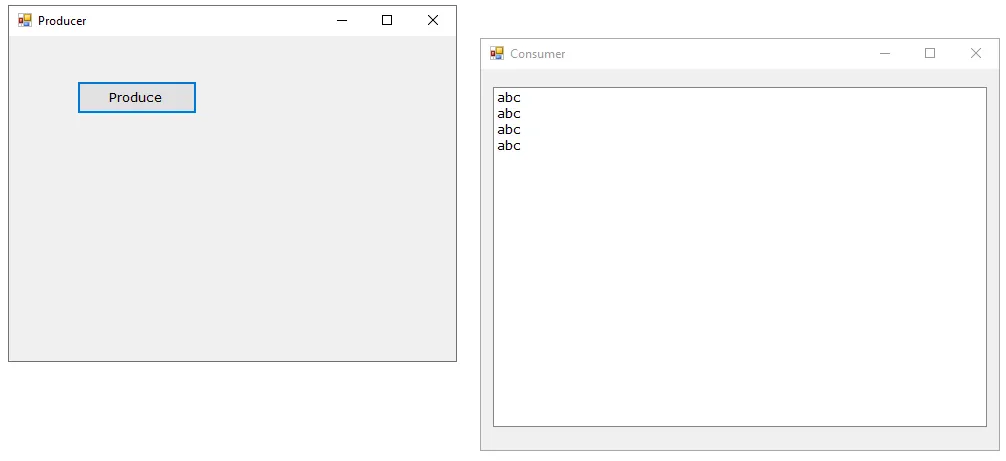

click produce button on producer the message will be added in the consumer application. running producer and consumer

Run producer without consumer application

  1. Close the consumer application.
  2. Click produce button twice in producer application.
  3. Now run the consumer again.
  4. We can see the consumer will consume the missed messages.

Add timer in the producer project

Delete command button in the producer project and add a timer control in form design.

Add the below code.

using System;
using System.Windows.Forms;
using Confluent.Kafka;

namespace KafkaProducer
{
    public partial class frmProducer : Form
    {
        private ProducerConfig config = new ProducerConfig { BootstrapServers = "localhost:9092" };
        private IProducer<Null, string> pBuilder;

        public frmProducer()
        {
            InitializeComponent();
        }

        private void timer1_Tick(object sender, EventArgs e)
        {
            try
            {
                // instead of sending some value, we send current DateTime as value
                pBuilder.Produce("testTopic", new Message<Null, string> { Value = DateTime.Now.ToLongTimeString() });
            }
            catch (ProduceException<Null, string> err)
            {
                MessageBox.Show($"Failed to deliver msg: {err.Error.Reason}");
            }
        }

        private void frmProducer_Load(object sender, EventArgs e)
        {
            pBuilder = new ProducerBuilder<Null, string>(config).Build();
        }

        private void frmProducer_FormClosing(object sender, FormClosingEventArgs e)
        {
            pBuilder.Dispose();
        }
    }
}

Here we added a timer and producer a message every second.

Now run the consumer and producer.

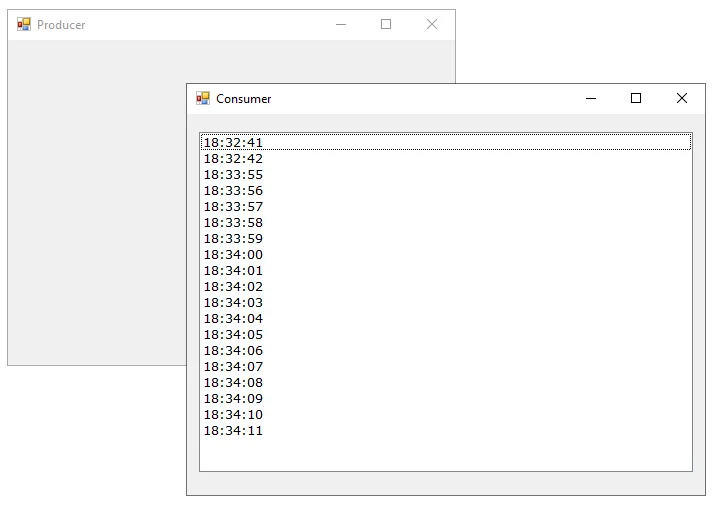

producer with timer
